carbon fiber cnc machine Machining Carbon Fiber Sheets
EG-R82A2
Machining Carbon Fiber: CNC, Composites & Techniques. CNC carbon fiber machine supplier.
Quantity:
CNC router drilling
Mechanical configuration CNC router carbon fiber
| Mechanical configuration | ||||
| Models | EG-R82A2S | EG-R76A4S | EG-R76A6S | |

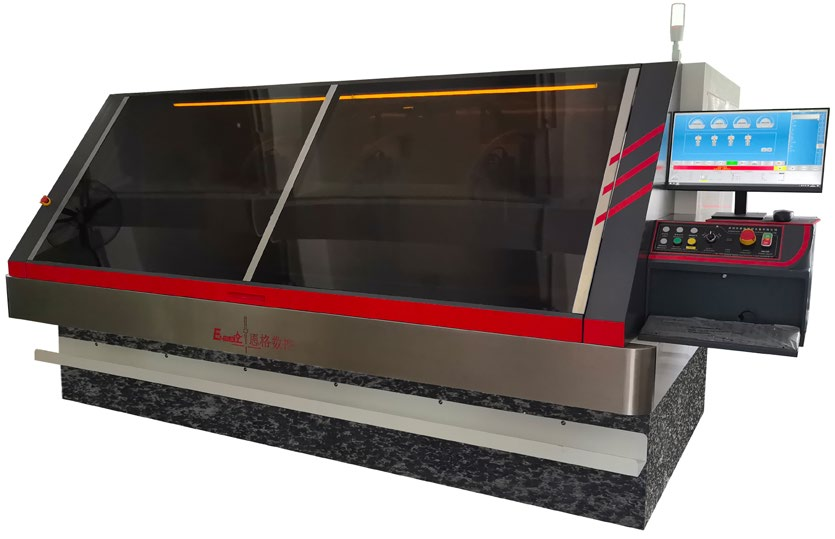

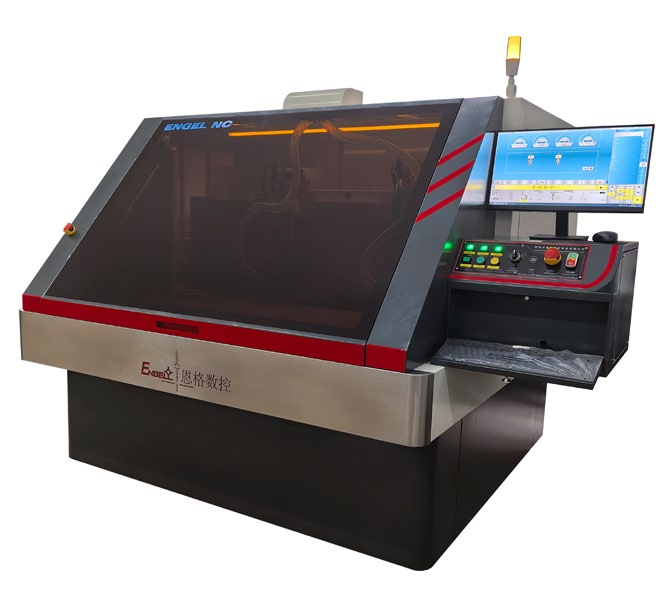

| PICTURE | ||||
Two spindle   Four/six spindle | ||||
| SIEB&MEYER CNC82.00AS control system | ||||
| Number of Stations | 2 | 4 | 6 | |
| Working Area | 2-650*800mm | 4-650*760mm | 6-650*760mm | |
| Spindle Spacing | 660mm | |||
| Limear guide | X Y Z axes precision limear guide | |||
| Lead screw | Z axis 2010 C5 precision lead screw | |||
| Spindle Type | Ball bearing 15.000rpm~60.000rpm MAX Power 1.8kW(OPT: 2.5kW) | |||
| Servo System | X Y linear motor (Standard ) ；Z axes 400W AC Servo motor | |||
| XY Rapid Positioning Speed | 50-100m/min | |||
| Z Rapid | 35m/min | |||
| Positioning Speed | ||||
| Linear Scale Resolution | 0.5--1μm | |||
| Accuracy | Routing: ±0.05mm(Engel condition) Drilling: ±0.02mm(Engel condition) | |||
| Bit applied | Drilling bit： ￠ 0.5~6.5mm | |||
| Routing bit： ￠ 0.5~3.5mm | ||||
| Tool Changing System | Automatic tool change 10~300ATC+Tool detector(Tool Length+ Diameter) | |||
| Automatic Door | Yes | |||
| Machine Weight (kg) | 4500KG | 7500KG | 11000KG | |
| Power Requirement | AC 3PH-380V 6.5KW | AC 3PH-380V 10.0KW | AC 3PH-380V 15.0KW | |
| Air Requirement | 0.65MPa, 80L/MIN above | 0.65MPa, 120L/MIN above | 0.65MPa, 160L/MIN above | |
| Vacuum Requirement | -1200~-1500mmH2O 1.5M3/min | -1200~-1500mmH2O 3.0M3/min | -1200~-1500mmH2O 4.5M3/min | |
| Working Environment | Temperature23±3℃,Relative Humidity less than 75% | |||
| Applications | Double sided multi layer board, BT board, 5G series high-precision PCB, MINI LED, half hole board, COB metal substrate,Carbon fiber | |||
Carbon fiber cnc machine manufacturer, welcome to inquiry!
